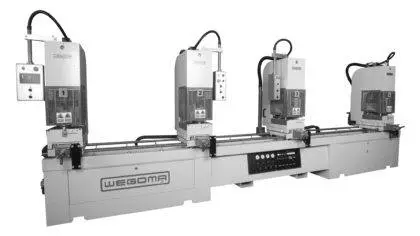

Wegoma WSA-4-UNI
Four-head Inline Welding Machine
Description
An exceptional addition to the manufacturing line of any PVCu window fabricator the Wegoma WSA-4-UNI offers four welding heads.
Enquire Now Download BrochureFull Description
Designed with a turret facility to allow H-welds, as well as pneumatic back fences for v-notch positioning, the WSA-4-UNI is a game changer when making your fabrication line more efficient without sacrificing consistently excellent result.
The WSA-4-UNI’s weld heads can be locked at any place through the pneumatic locking system and with ten available positions for the welding heads, positioning profiles is a quick and accurate process. For more information about the Wegoma WSA-4-UNI, including stock and delivery, please contact the Avantek team on sales@avantekmachinery.co.uk.
Product Features
- For the welding of uPVC profiles
- Heavy steel construction
- The four welding heads move easily over precise ball bearings on hardened and polished guide rail
- The weld heads can be locked at any place through a Pneumatic locking system
- Automatic welding head positioning (10 Positions) make it possible to insert the profiles quickly and accurately. Also pneumatic back fence for transom welding
- Automatic repeat positioning for same profile processing
- Dual pressure safety clamping system
- Two hands safety operation for the automatic welding process
- All of the welding parameters as welding temperature, heating up time, adjusting pressure, clamping pressure, welding pressure, welding time are individually adjustable
- Heated welding seam restrictions. Standard: 2mm; 0.5mm optiona
- Heads (1 and 2) and heads (3 and 4) can turn inwards through 90° for H-welding
- Transom and crucifix welding
- All heads are able to be used independently
- Easy heating plate cleaning and teflon changing function
- Fast contour block changing system
Technical Data
| Length | 5800mm |
| Width | 800mm |
| Height | 2350mm |
| Weight | 1800kg |
| Power Supply | 240/400V,3PH,50Hz N.PE |
| Power Output | 11000W |
| Compressed air supply | 6-8bar |
| Air Consumption | 270L/min |
| Welding angle range | 30-180 |
| Knife Temperature Max | 65° C |
| Welding plate Temperature Max | 300° C |
| Profile Width Max | 140mm |
| Profile Height Max | 210mm |
