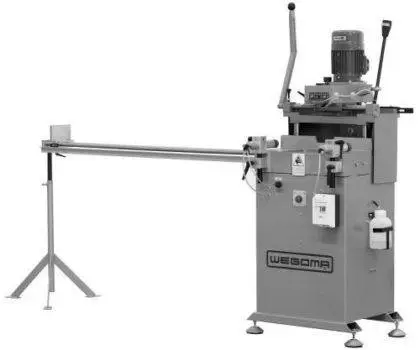

Wegoma KF-227 (W/D)
One Spindle Copy Router
Description
Designed to work with aluminium, uPVC and steel profiles, the Wegoma KF-227 is a multifunctional solution for window fabricators.
Enquire Now Download BrochureFull Description
Both the W and D versions of this One Spindle Copy Router boast a horizontal pneumatic double clamping unit, automatic central switch and a cooling spray unit.
Size and form of routed shapes are adjusted using a template system. The KF-227 offers three routing depth settings and a vertical routing head. The machines ‘W’ version is a Single Phase Current while the ‘D’ version is a Three Phase Current.
For additional information about the KF-227 One Spindle Copy Router by Wegoma, including stock and delivery information, please contact the Avantek team on sales@avantekmachinery.co.uk
Product Features
- KF227W is Single Phase Current
- KF227D is Three Phase Current
- Vertical routing head
- Pneumatic horizontal double clamping
- Revolver stop for the setting of three routing depths
- One blank template standard
Technical Data
| Weight | 105kg |
| Power Supply | 220/400V,50/60Hz |
| Power | 1.1kW |
| Speed | 2800rpm |
| Milling Area | 220 x 115mm |
| Routing Depth | 110mm |
| Routing Spindle Speed | 12,000rpm |
| Max. Stroke Routing Head | 260 x 110mm |
| Copy Pin Diameter | 5mm and 8mm |
| Air Supply | 6-8 bar |
