Wegoma AKF-125-P
End Milling Machine
Description
Versatile with the ability to be used on both uPVC and aluminium profile.
Enquire Now Download BrochureFull Description

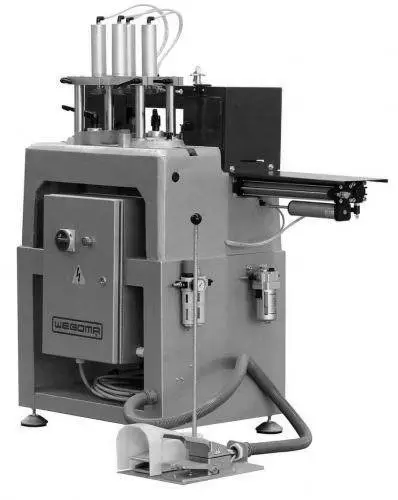

The Wegoma AKF-125-P End Milling Machine delivers high precision results thanks to its linear bearing and guide which provides long-time accuracy.
Boasting a hydro-pneumatic router feed and pneumatic double clamping device, the AKF-125-P offers fast tool change and a quick positioning system for four kinds of profiles for the highest possible efficiency. With double milling possible thanks to the vertical pneumatic clamping, the AKF-125-P by Wegoma is the ideal solution for a fabrication process.
For more information on the AKF-125-P End Milling Machine by Wegoma, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.
Product Features
- Pneumatic double clamping device
- Profile stop to both sides 60°
- Depth stop for 4 positions
- Quick change cutter replacement
Technical Data
| Weight | 50kg |
| Power Supply | 220/400V,50/60Hz |
| Power | 1.2kW |
| Speed | 2800rpm |
| Max. Feed | 380mm |
| Max. Depth | 90mm |
| Max. Cutter Diameter | 210mm |
| Milling Spindle Diameter | 32mm |
| Max. Profile Width | 100mm |
| Max. Profile Height | 250mm |
| Compressed Air Supply | 6-8 bar |
