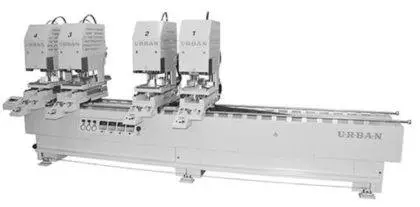

URBAN AKS-5550

Multi-head Welder

Description

Offering the ultimate in versatility, flexibility and efficiency, the URBAN AKS-5550 Multi-head Welder is the ideal addition.

Enquire Now Download Brochure

Full Description

Arriving with variable triple and four-head welding capabilities, the AKS-5550 from URBAN can accommodate angle, transom and cross welding. Boasting a pneumatic head adjustment, this multi-head welder by URBAN works with a variety of different transom widths. Boasting the ability make adjustments for individual jobs, operators are able to set welding temperature, heat-up time, fusing, joining and clamping pressure, and joining time.

Turning two of the welding heads on the right side allows for the AKS-5550 to also perform a 90° H-welding. For further information on the AKS-5550 Multi-Head Welder by URBAN, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.

Technical Data

Weight 3 head – 1600kg 4 head – 2100kg
Height 1840mm
Width 1680mm
Power supply 230V/400V 50-60Hz L1-L2-L3-N-PE
Compressed air supply 7 Bar
Air consumption 20 Litres
Minimum profile height 40mm
Maximum profile height 125mm
