Digi STOP
Length Stop
Description

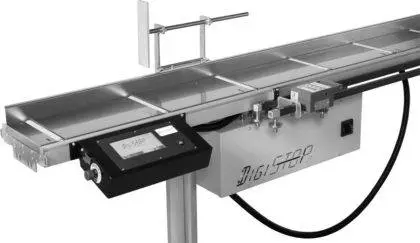

The DigiSTOP Length Stop offers cutting-edge, precise positioning when connected to a mitre saw – and can process aluminium, timber and uPVC
Enquire Now Download BrochureFull Description
Constructed from hard-wearing aluminium the Digi STOP arrives with an integrated carriage positioning system controlled by stepper motor. The control unit on the device manages the positioning system, including a magnetic measuring system with an impressive accuracy of +/- 0.1mm.
With the ability to feed from the left or right, the Digi STOP is reversible and versatile – the ideal addition to any fabricators manufacturing process. For additional information about the Digi STOP Length Stop, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.
Product Features
- Usage on various lines
- Visibility of clamping/cutting signal from connected saw
- Ability to amend, add or delete every line
- Ease of managing the head cut
- Receiving information through USB memory of a cutting list
- Reception via radio measurements from Digi-BAR electronic caliper and bar code reader
Technical Data
| Cutting Unit | |
| Kind of Cut | Up Cut Saw |
| Cutting Angles | CNC Controlled “arrow cut” from 20 to 160 |
| Blade | 250mm Diam |
| Blade Motor | Triphase 1.3Kw 2800rpm |
| Positioning Unit (Length Stop) | |
| Minimum Piece Measurement | 180m |
| Maximum Piece Measurement | 3180mm |
| Carriage Movement | Stepper Motor, Magnetic Encoder Feedback |
| Accuracy | +/- 0.1mm |
| Positioning Speed | 50m/min |
| Electronic | |
| Control Unit | HMI 7″ Colour Touch + PLC Cards |
| Radio Interfaces | Integrated |
| USB for External Keyboard/Mouse/USB Flash Drive | Integrated |
